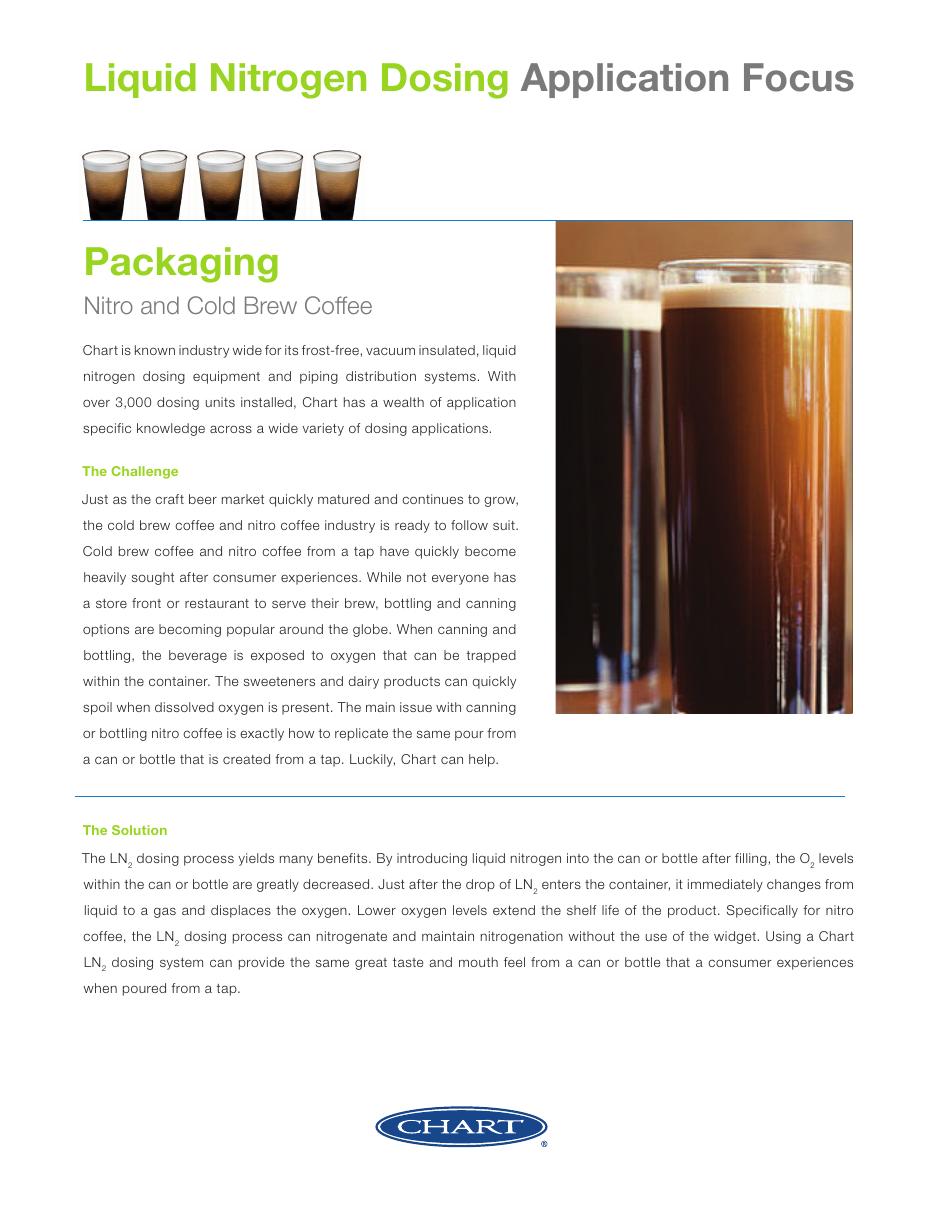

Application Focus - Nitro  and Cold Brew Coffee

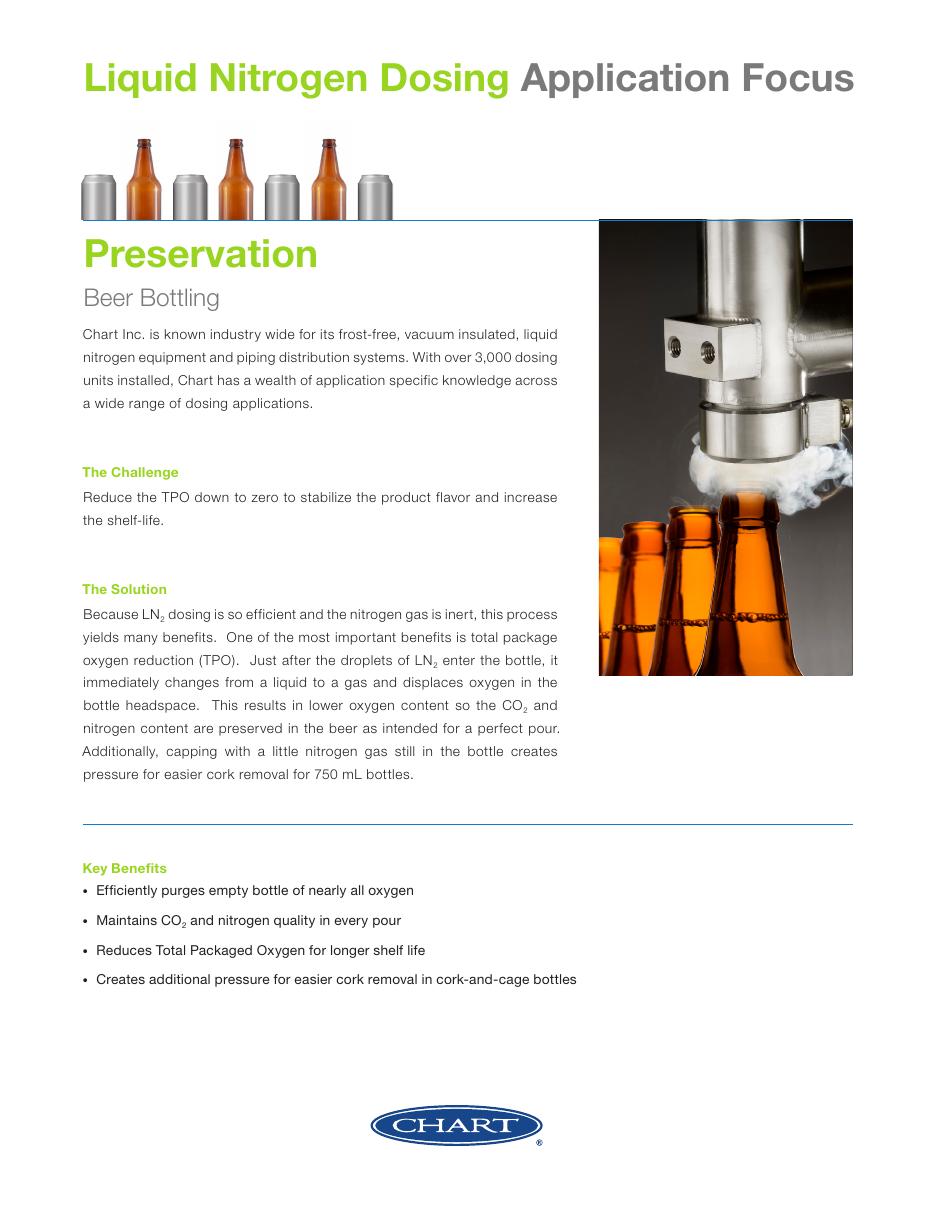

Application Focus - Nitrogen Dosing for Beer

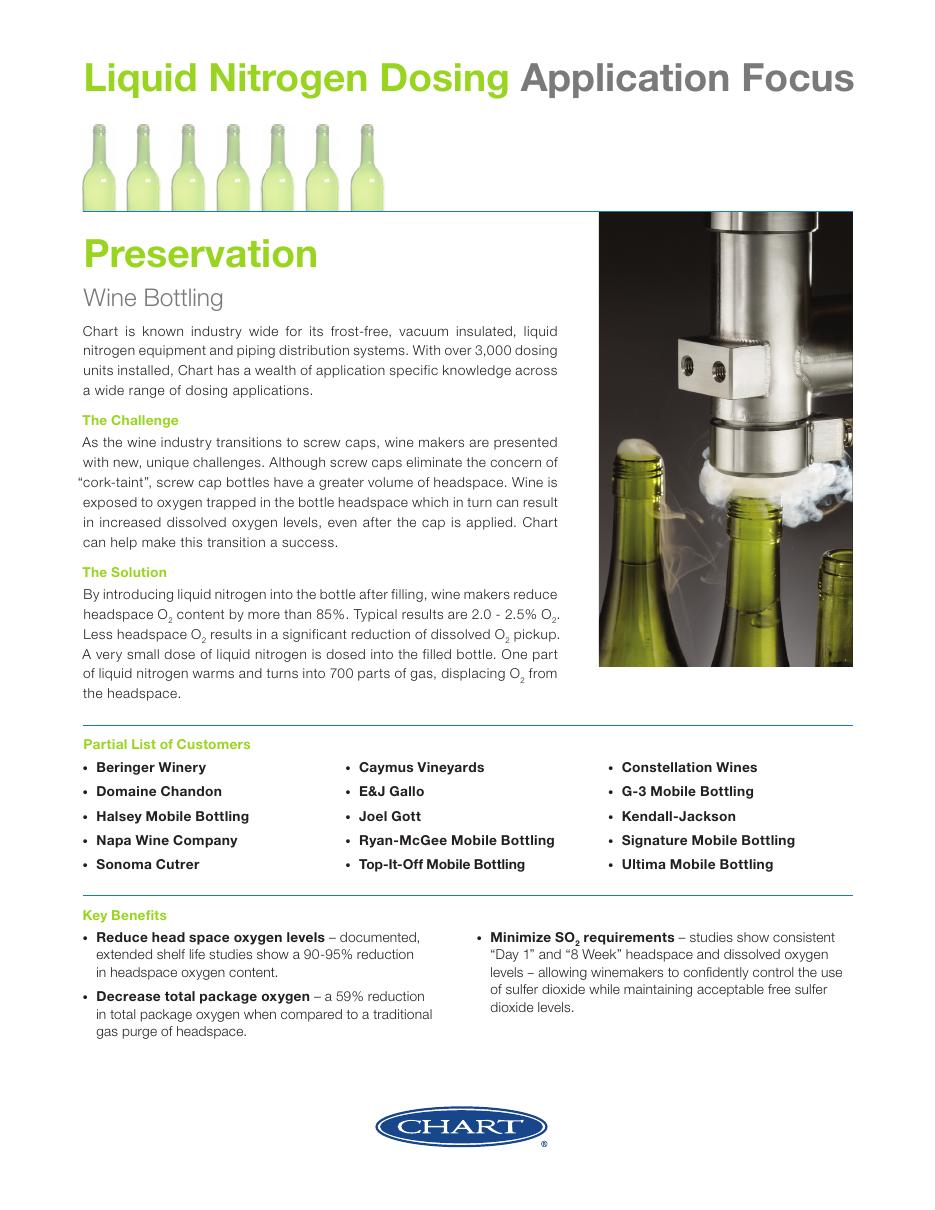

Application Focus - Nitrogen Dosing for Wine

Reducing Waste and Cost One Drop at a Time

One part of liquid nitrogen (LN2) warms and expands into 700 parts of gaseous nitrogen at ambient temperature. Chart's automated dosers dispense a precisely measured dose of LN2 into each container prior to sealing. The trapped LN2 vaporizes, creating pressure, and adding rigidity to the container – allowing for a thinner container wall.ling.

Why LIQUID NITROGEN(LN2)?

  • Img

    Preservation An exact dose of liquid nitrogen is introduced seconds before the seamer or capper. The volumetric expansion of the vaporized nitrogen pushes oxygen out of the container.
    Key Benefits: oxygen reduction, extended shelf life, efficient nitrogen consumption, stabilization of organic products.
    Typical Applications: automobile oil, beer, condiments, wine
    In Operation: documented studies show a 26% increase in shelf life and 90 to 95% reduction in headspace oxygen compared to traditional gaseous nitrogen purging

  • Img

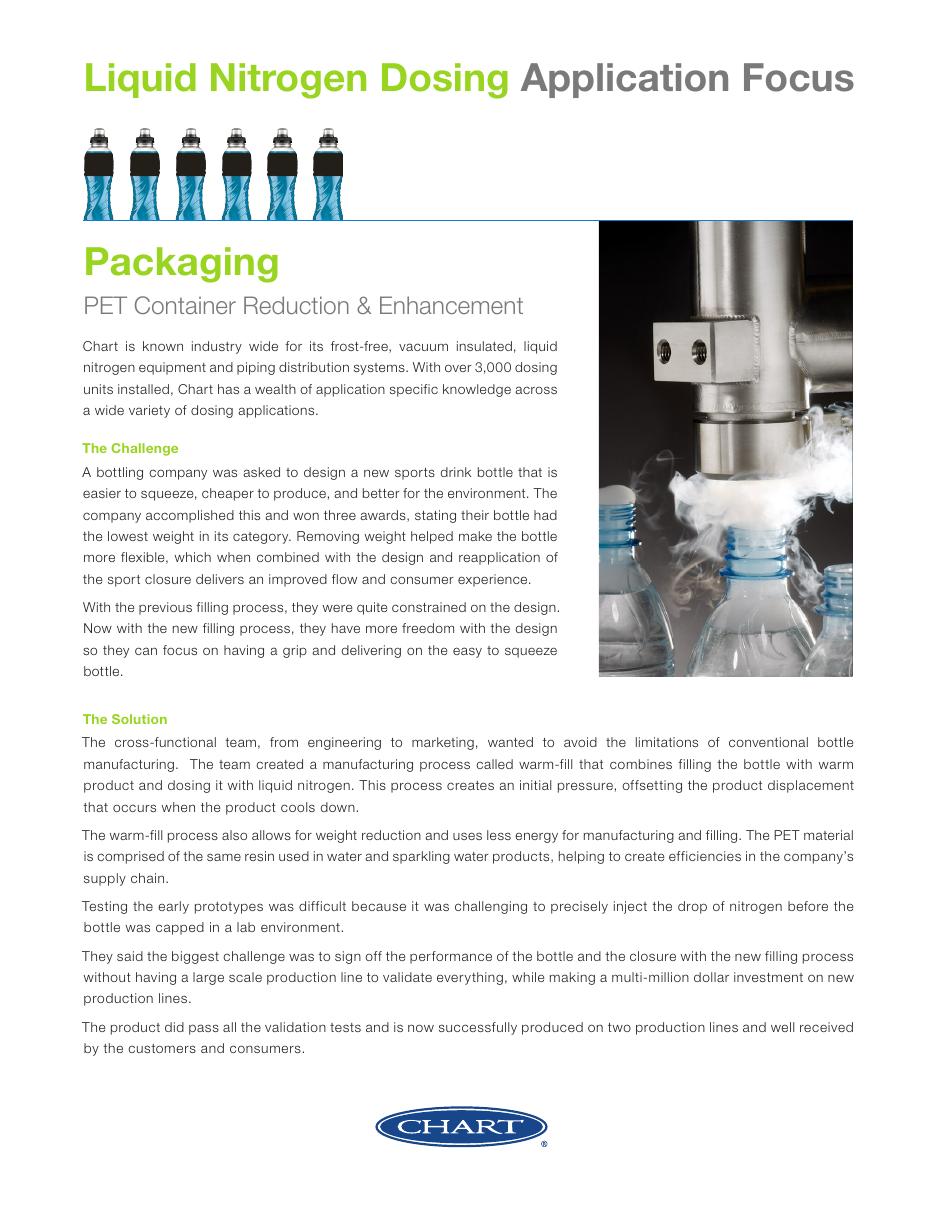

    pressurization A precise dose of LN2 is delivered immediately before capping or seaming. The trapped LN2 quickly vaporizes, pressurizing the container.
    Key Benefits: lighter weight packaging, increased packaging rigidity, , eliminates package paneling, ease of labeling, oxygen reduction.
    Typical Applications: water, enery drink , flax seed oil, juices (hot / ambient fill), teas, vinegar
    In Operation:     documented 9 gram reduction in PET bottle weight with Chart's MicroDose™ technology. Assuming the PET resin cost of EUR2/kg and a single production line running at 700 bottles/minute, this equates to an annual cost saving >EUR2.6 million.

  • Img

    freezing A dose of liquid nitrogen is introduced to "lock in" and surface freeze the product before it's transferred to a traditional tunnel or spiral freez. Key Benefits: maintains product integrity, aids in packaging and labeling, enables new products to be brought to market, enhances flavor and texture Typical Applications: dipped ice cream cones and iCream Café.
    In Operation: liquid nitrogen flash freezing of ice cream cones provides stability and support through the packaging process resulting in improved overall aesthetics

  • Img

    Modified Atmosphere Packaging (MAP) A large dose of liquid nitrogen is introduced into the package seconds before the seamer or capper.
    Key Benefits: extended shelf life, oxygen reduction, reduced nitrogen consumption, stabilization of organic products.
    Typical Applications: baby formulas, coffee, nuts, trail mix, botanicals.
    In Operation: 46% reduction in nitrogen consumption using a Chart doser in lieu of traditional nitrogen gas purging.
